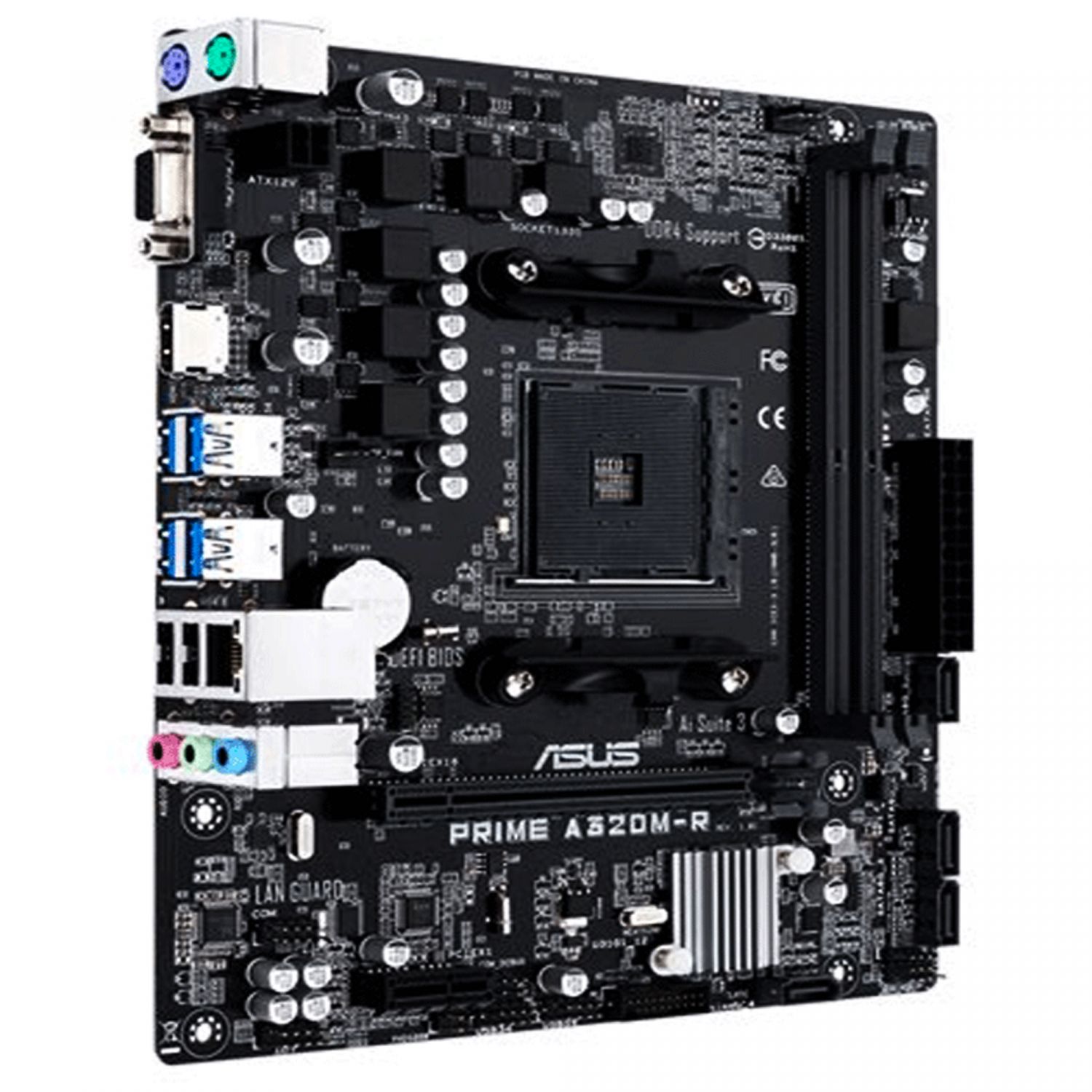

ASUS Prime A320M-R-SI
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability, and compatibility for the very best DIY PC experiences. Simply stated: it´s time for Prime.
ASUS is the world´s foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-around protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world´s leading motherboard brand.
Powered by AMD® Ryzen™ AM4 and 7th generation Athlon™ processors to maximize connectivity and speed with support for NVMe M.2, front panel USB 3.0, gigabit LAN, and up to 32GB of DDR4
Model |
ASUS Prime A320M-R-SI |
CPU |
AM4 socket for AMD Ryzen™ / 7th Generation A-series / Athlon™ processors Supports CPU up to 4 cores* * For limited CPU only, refer to www.asus.com for the AMD® CPU support list. |
Chipset |
AMD A320 chipset |
Memory |
AMD Ryzen™ processors: 2 x DIMMs, max. 32GB, DDR4 2666/2400/2133 MHz, ECC and non-ECC, unbuffered memory AMD 7th Generation A-series / Athlon™ processors: 2 x DIMMs, max. 32GB, DDR4 2400/2133 MHz, non-ECC un-buffered memory Dual-channel memory architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. ** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List) |
Graphics |
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-series APU Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with maximum resolution of 4096 x 2160 @24Hz - Supports D-Sub with maximum resolution of 1920 x 1200 @60Hz - Maximum shared memory of 2048 MB |
Expansion slots |
AMD Ryzen™ Processors/ 7th Generation A-series/ Athlon™ Processors: 1 x PCIe 3.0/2.0 x16* (x8 mode) 1 x PCIe 2.0 x1 slot** * AMD RyzenTM Summit Ridge Processors can support PCIe 3.0/2.0 x16. * PCI Express x1 slot can support PCIE 3.0. |
Storage |
AMD A320 Chipset 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support |
LAN |
Realtek® RTL8111H Gigabit LAN Controller |
Audio |
Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC * Use a chassis with HD audio module in the front panel to support an 8-channel audio outpu |
USB |
6 x USB 3.1 Gen1 (2 ports at mid-board, 4 ports at back) 6 x USB 2.0/1.1 ports ( 4 ports at mid-board, 2 ports at back) |
ASUS unique features |
Dependable Stability ASUS 5X Protection II - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 3 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability Superb performance UEFI BIOS - Most advanced options with fast response time Easy PC DIY Safe motherboard mounting - Component-free areas to minimize damage risk Q-Design - ASUS Q-DIMM - ASUS Q-Slot UEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 Quiet Thermal Design: - Stylish Fanless Design: Chipset Heat-sink solution - ASUS Fan Xpert |
Rear panel I/O ports |
1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green) 1 x HDMI port 1 x D-Sub port 1 x LAN (RJ-45) port 2 x USB 2.0 ports 4 x USB 3.1 Gen 1 ports 3 x Audio jacks support 8-channel audio output |
