16 cameras, 5MP, IVR, DVR, 2TB hard disk, 25MT cable, CAT 6

Automatic Wireless Connection, plug and play
1080P H.265+ wireless network recorder and 1080P wireless cameras
In open space without itrefere transmission distance up to 800 meters
Insert professional surveillance Wireless board, with stonger anti-interfere ability
One-push to configure
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy to Install, User-Friendly Operation

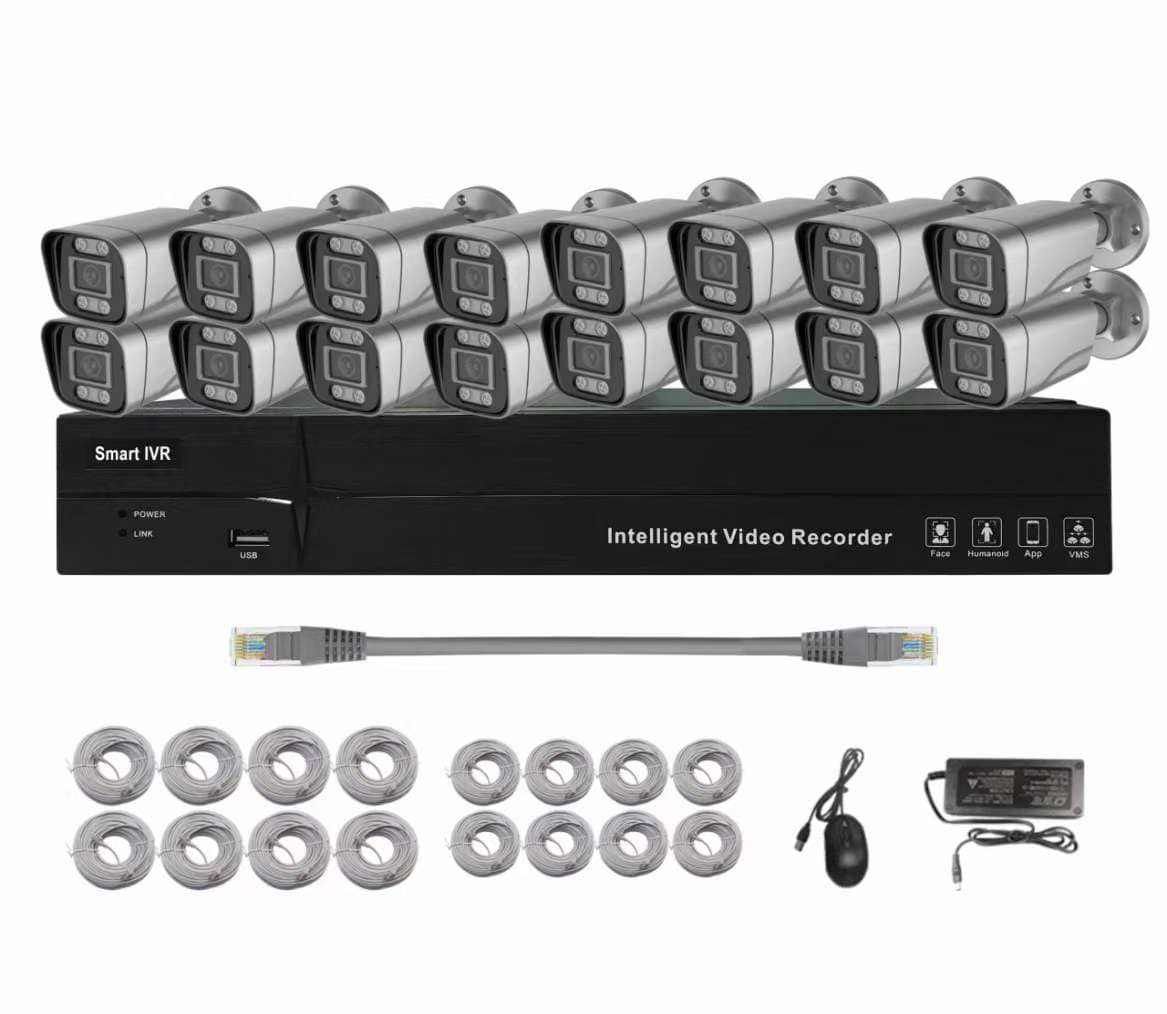

Inner Included:
1 x 16-Channel 4K NVR
16 x 5MP Bullet IP Cameras
16 x Power Supply (12V-1000mA) for Cameras
1 x Power Supply (12V-2000mA) for NVR
1 x 3.3 Feet Network Cable
1 x Mouse
1 x Screw Bag
1 x User Manual

IP Camera NVR Specification:

NVR 1x Support 16 CH 4K input and output 5MP NVR
Camera 16PCS x Bullet waterproof Camera 4 pcs dual light board, night vision 20M
Cable 16 x 25m Cate5 Cable+ 1 pcs 1.5M cable
Mouse 1xUSB 2.0 Mouse
Hard Disk 2TB
Adaptor DC52V/4.62A

Camera 16PCS x Bullet waterproof Camera 4 pcs dual light board, night vision 20-30M
Image Sensor 1/2.9" Full HD CMOS Sensor
Resolution 5MP
Effective Pixels 2560(H)*1440(V)
Compression H.264/H.265
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination 0.01Lux
S/N Ratio ≥52dB
Video Output Network

Lens
Focus Length 3.6mm
Focus Control Fixed
Lens Type Fixed
Pixels 5MP

Night Vision
Infrared LED 6 PCS
Infrared Distance 20M
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
ONVIF Support ONVIF 2.6(Profile S/T)
POE Yes, Support IEEE 802.3af
Video Delay 0.5 S (Within the Lan)
Main Stream 1 5MP 2592*1904@20fps
Sub Stream 1 D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240)
IE Brower IE8-11
Smart Phone smart Phone, iPad, Android, Android Pad

Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control)
Defog Mode Support
ROI Support 4 areas, can set multi-level
BLC YES
Human Detection Detect ≤5 human at the same time
Detection Area Support appointed area, full screen by default
Trigger Mode Video trigger
WDR D-WDR
Motion Detection Support
Privacy Masking 4 Rectangular area
Occlusion Alarm Support 1 area
Recording Mode NVR
Language English

General
Housing Metal , IP66
Operation Temperature -20ºC ~ +60ºC RH95% Max
Storage Temperature -20ºC ~ +60ºC RH95% Max
Power Supply DC12V±10%, 1AN, POE
Dimension φ66 x 176(L) mm
Weight 370g
Model System
Main Processor SSR621Q
Operating System Embedded LINUX

Video
Input Support 16 Channels IPC input(5MP/D1+16 CH Preview+4CH playback)
Output 1 VGA, 1 HDMI
Audio
Output 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Audio Compression standard G711u, G711a
Alarm
Human Detection 16CH
Motion Detection 16 Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot

Display
HD Output1 Resolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 16 CHxD1
Digital Zoom YES
OSD Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression H265+/H.265/H264
Resolution 5MP(2592×1944)
Record Resolution 5MP(2592×1944)
Record Mode Manual/fixed time/alarm recording

Playback & Backup
Local Sync Playback 1CH 4K/16CH 1080P(1920*1080)
Decode Capability 4CH 1080P(1920x1080)@30fps
Remote Sync Playback YES
Playback Mode Regular playback, event playback,external file playback
Backup Mode USB protable HDD, memory
Network
Interface 17 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth 64MB
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version Support ONVIF 2.6(Profile S/T)
Web Browser IE8-11
IMS Software Support Windows 7/ Windows 8/Windows 10
Cloud Support(P2P) Yes
Smart Phone smart Phone, Android
POE 16CH, 10/100Mbps network port, IEEE802.3af, 52W
Storage
Interface Type 1 SATA Hard Disk Interface
Capacity 2TB capacity

General
Language English
USB Interface 2 USB 2.0 Interfaces
RS485 /
Power Supply DC 52V/4.62A ≤10W (Without Hard Disk and POE)
Working Environment -10~55ºC/10~90%
Dimension(W×D×H) 255(L)x210(W)x42(H)mm
Weight 1.6 KG (without HDD)
