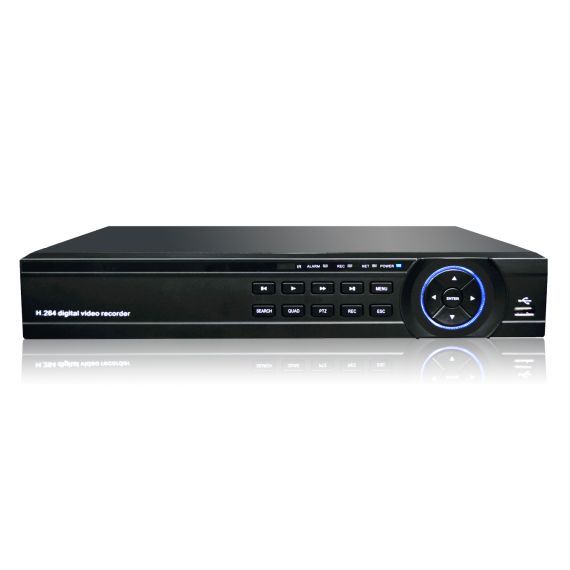

HVR DVR NVR, hybrid video recorder for megapixel IP cameras and/or analog cameras (4 analog or AHD inputs).
The internal processor of the Hybrid DVR allows you to associate resources for analog CCTV systems, for digital IP systems, or allows you to manage IP cameras and analog cameras together.
DVR/NVR (AHD SUPPORTED) |
|
HY-AHD-4004Z |
|
CHANNELS |
4 |
P2P |
YES |
Iphone/ android APP |
ATV_AHD |
pc |
HYCM200 |
ENTER |
1 SATA |
1 VGA |
|
1HDMI |
|
1 VIDEO OUT BNC |
|
1 RCA AUDIO OUT |
|
3 USBs |
|
RS485 (+/-) PTZ |
|
4 BNC video IN |
|
4 RCA audio INs |
|
1 LAN |
|
ALARM |
NO |
VIDEO COMPRESSION |
H.264 |
RAID FUNCTION |
NO |
VIDEO INPUT RESOLUTIONS |
960P; 720P ; 960H; /IPCAM 720P |
DDNS |
PEOPLEFU DDNS; CN99DDNS; DYNDNS; NO-IP; ORAY; NETNVR; DVRIPC; IVS168 |
OK ftp OK EMAIL OK RECORDING WITH MOTION DETECT |
|
NVR PROTOCOL |
ONVIF |
Specifications | ||
model | HY-AHD-4004Z | |
System | operating system | Embedded LINUX operating system |
Display | Operation Interface | 16 bit real color GUI interface support mouse operation |
MultilingualLanguage | YES, 25 kinds of language | |
Display screen |
1/4 screen |
|
Video | Video Standards | PAL/NTSC(720P) |
Image encoded | H.264(Main Profile) | |
Capture function | Yes | |
Monitor quality |
Monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) |
|
Playback quality | 960P/720P | |
Encode capability | 4* 720P @25fps | |
Decode capability | 4* 720P @18fps | |
Multi-Input
(ONVIF 2.8)
|
Analog:4ch 720P | |
Analogue+Network HD:720P(AHD)*2+720P(network)*2 | ||
Network:4*720P(network) | ||
Audio | Audio compression | G.711A |
Record and playback | Record mode | Manual, alarm, motion detection, timing |
Local playback | 1~4ch playback | |
Video search | Time, date, event, channel search | |
Storage and backup | Space Usage | Video:720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel |
Video storage | Local Hard Disk, Network | |
Back up mode | Network backup, USB portable HDD | |
interface | Video input | 4ch BNC(1.0Vp-p, 75Ω) |
Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | |
Audio inputs | 4ch RCA (200-2800mV,30KΩ) | |
Audio outputs | 1ch RCA(200-3000mV,5KΩ) /1ch HDMI audio output | |
Alarm input | No | |
Alarm output | No | |
Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
USB port | Support USB 2.0 port | |
HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 6TB) | |
user | User level | Admin / User |
User rights | Users can set different permissions (How to use please refer to the manual book) | |
Password protection | YES | |
remote | Remote Independent Operations | YES |
Download records | YES | |
Remote Event Trigger Recording | YES | |
cms | CMS Software for multiple DVRs (up to 255 DVRs simultaneously) | |
Browsers | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
Live Audio | YES | |
Online user | Max. 10 | |
Mobile Surveillance | YES (supporting iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android; iPad, iPhone, Andriod remote playback) | |
NetworkProtocol | DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | |
alarm | motion detection | 16 × 12 grids per channel; 6 adjustable parameters for accurate detection (for local analog channel only) |
Event Notification | FTP / Email | |
Pre-alarm Recording | YES | |
video loss | Video loss notification | |
Buzzers | YES | |
Others | IR remote controllers | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
remote control | YES | |
cooling fans | No | |
Tours | YES | |
Power Source (±10%) | DC 12V /2A | |
Power Consumption (±10%) | <10W(Without HDD) | |
Operating Temperature | 0℃ ~ +55℃ | |
Operating humidity | 10%-90% | |
Atmosphere | 86kpa-106kpa | |
Dimensions (mm) | 250mm(L)* 210mm(W)* 45mm(H) | |
System Recovery | System auto recovery after power failure |
