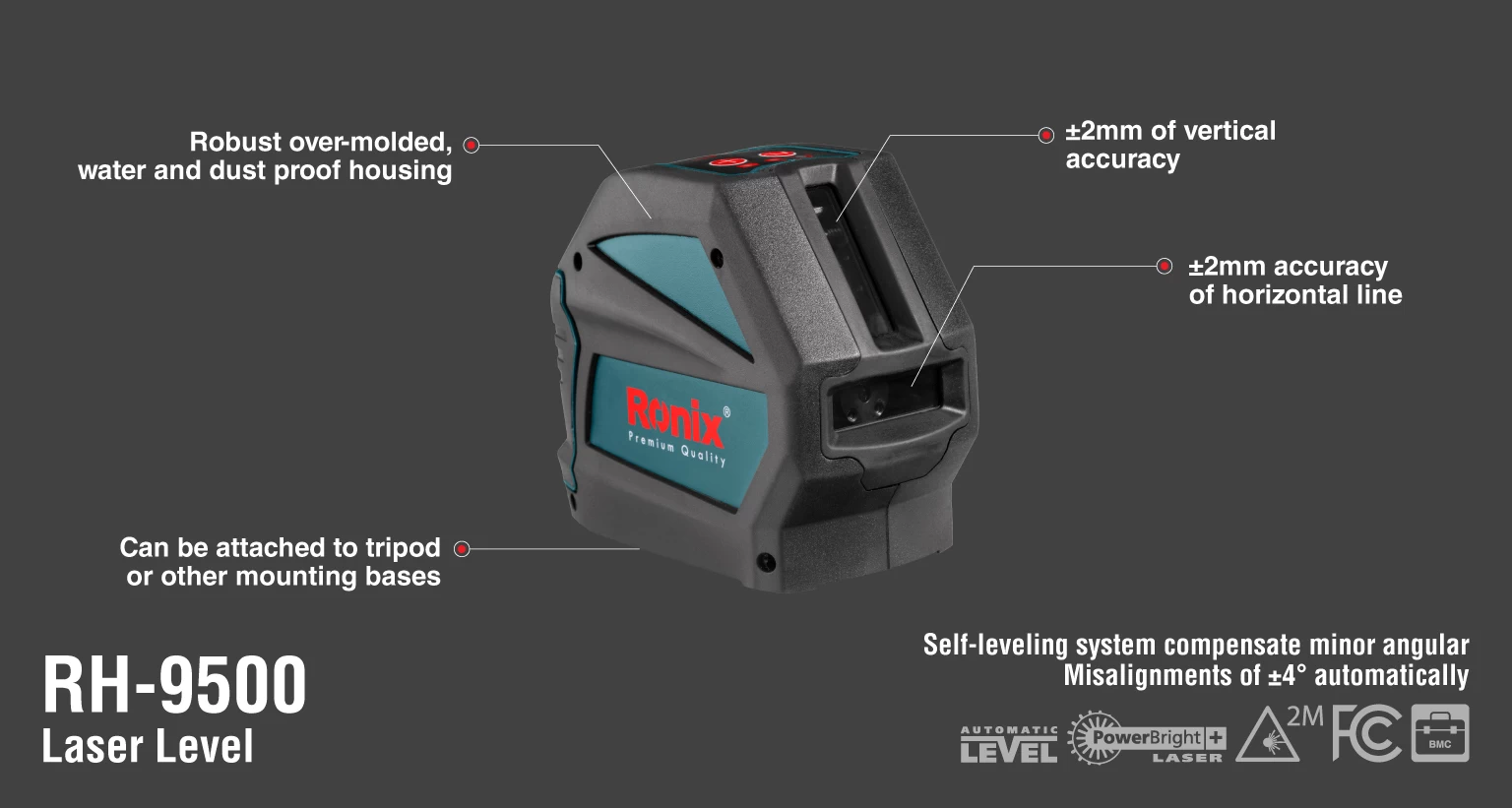

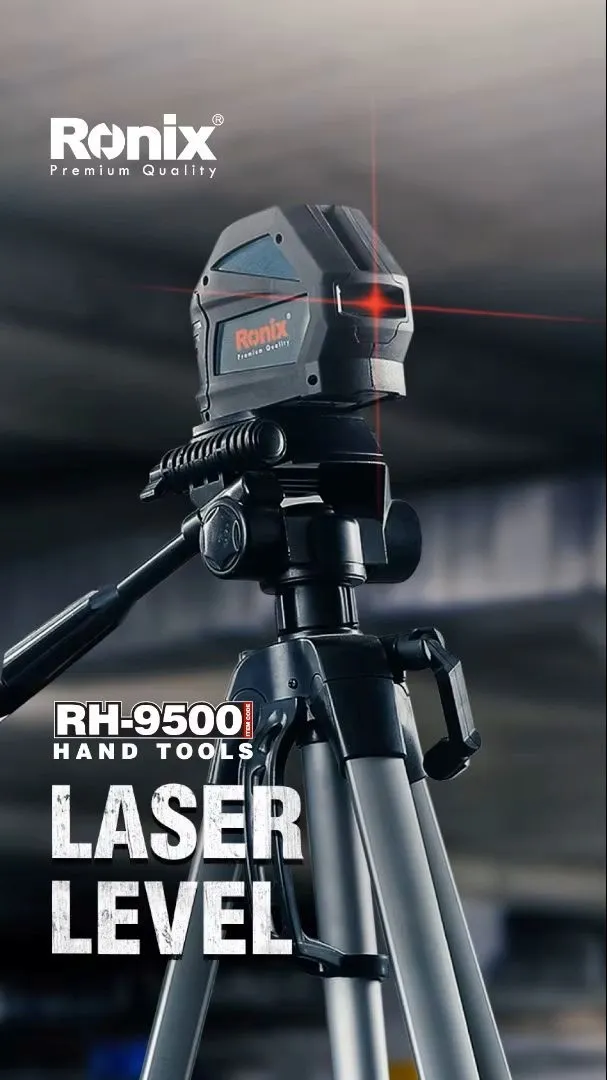

50MT, cross line, laser level, self leveling, red beam, RONIX RH-9500

Download Exploded View
Download User Manual
Features:

‐Both Indoor & Outdoor available(with detector)
-Vertical, Horizontal & Cross Line Modes
‐Projects two lines independently or together for a wide array level and/or plumb
applications
-Able to set up quickly and effortlessly to project horizontal or vertical lines
-Self-leveling system compensate minor angular misalignments of ± 4° automatically
-Built-in locking system to lock the compensator when in
transportation to avoid vibration
-Robust Over‐Molded Housing
-IP54 Water and Dust Proof to ensure years of dependable operation
-Working with various related accessories to reach nearly all
applications easily
-Pendulum lock for protecting laser system during movements
-Equipped with magnetic pivoting base which can be easily adsorbed onto metal parts
-Can be attached to tripod or other mounting bases for convenient positioning



Specifications

Model
RH-9500
Power Supply
3 x AA Alkaline batteries
Accuracy of horizontal line
± 2 mm@ 5m
Laser Type
635nm , laser class II
Operating Temperature
‐10℃to 45℃
Leveling Range
±3°
Working Range/With Detector
15m/50m with detector
Tripod Thread
1/4"
Storage Temperature
‐20℃to 60℃
Dimension
mm95 * 62 * 119
Continuous Working Time (All Diodes)
≥ 8hour
Vertical accuracy
± 2 mm@ 5m
Supplied In
BMC
