ASUS Prime H610M-R D4 SI

Home/Store/EU-WAREHOUSE

Product Details

Brand: ASUS

SKU: 4711081758372

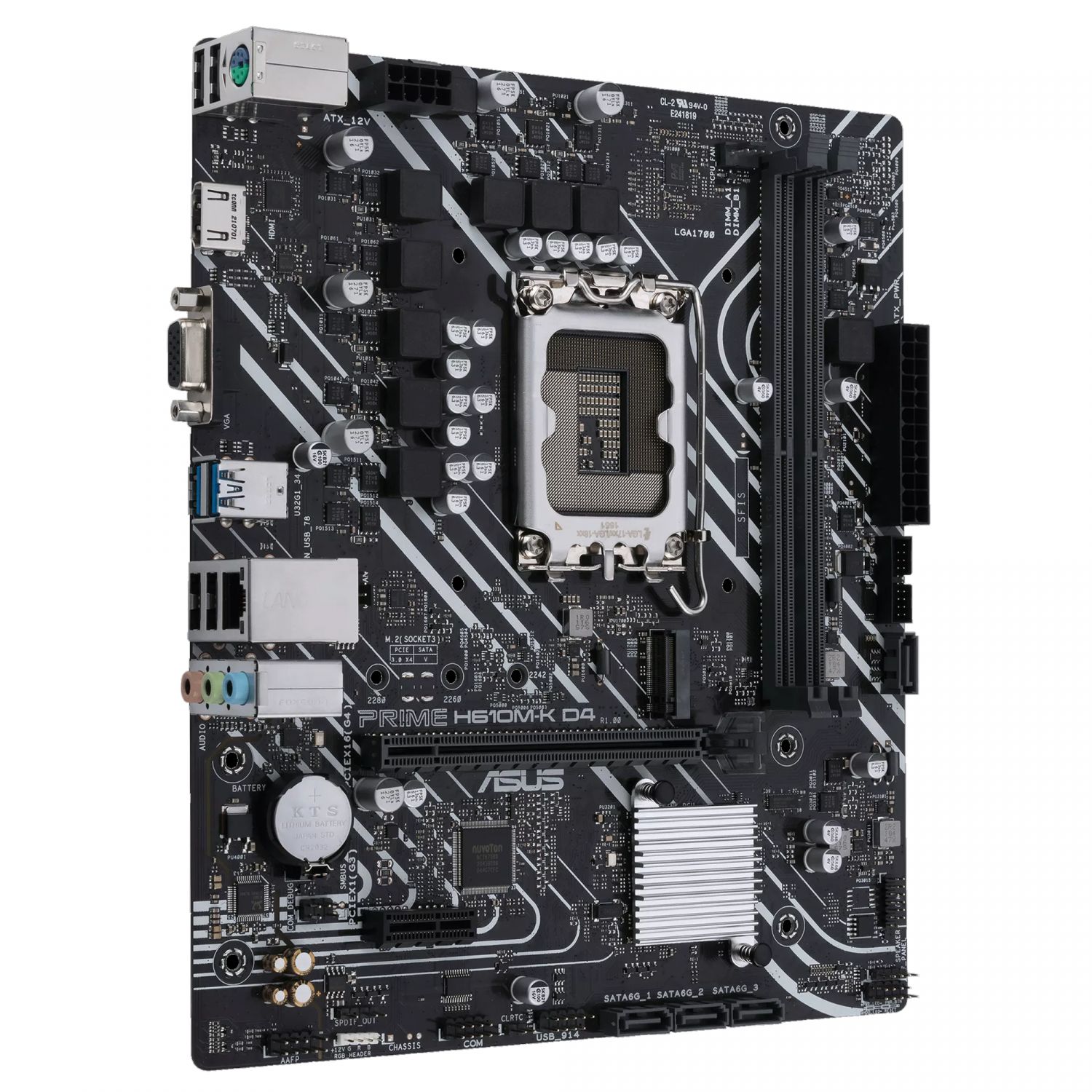

ASUS Prime H610M-R D4 SI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors.

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and

PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors.

ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power,

intuitive cooling and flexible transfer options.

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified

options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible EU-WAREHOUSE/ Tools to tune every aspect

of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting

that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header
Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
5X Protection III: Multiple hardware safeguards for all-round protection

Model	ASUS Prime H610M-R D4 SI
Graphics	1 x D-Sub; 1 x DVI-D; 1 x HDMI® port**
CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports up to Intel® 65W CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Chipset	Intel H610 Chipset
Expansion Slots	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports
Memory	1 x D-Sub port 1 x HDMI port * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slot	2 x DIMMs, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)*
I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port
Connectors	1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x Speaker header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN	1 x Realtek 1Gb Ethernet
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor; 8.9 inches x 7.6 inches (22.6 cm x 19.3 cm )
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
OS:	Windows® 11 64-bit, Windows® 10 64-bit
