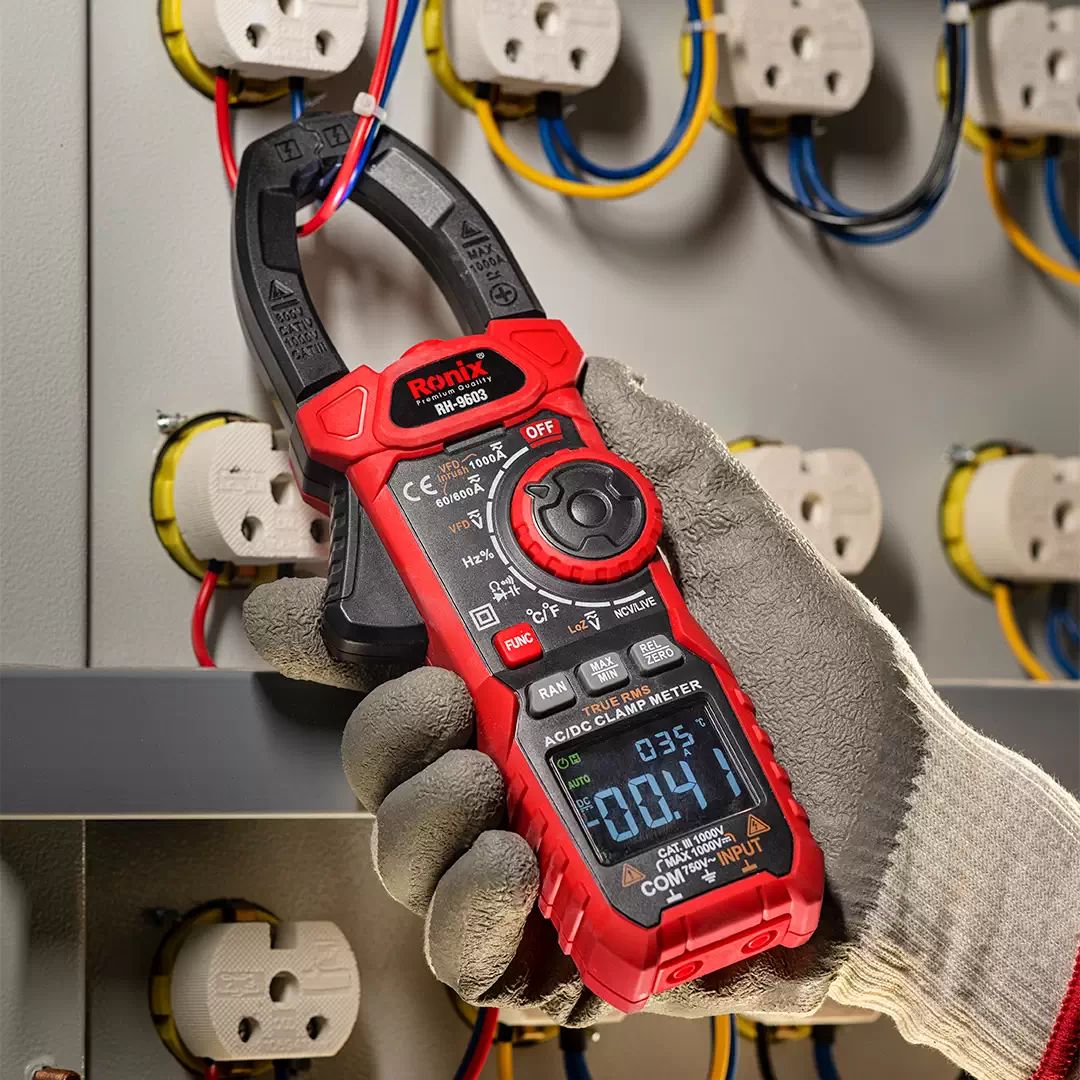

Model | RH-9603 |
DC Voltage Range | 600mV/6V/60V/600V/1000V |
Accuracy Rang of DC Voltage | (0.8%+5)± |
AC Voltage Range | 600mV/6V/60V/600V/750V |
Accuracy Rang of AC Voltage | (1.0%+5)± |
DC Current Range | 60A/600A/1000A |
Accuracy Rang of DC Current | (2.5%+8)± |
AC Current Range | 60A/600A/1000A |
Accuracy Rang of AC Current | (2.5%+8)± |
Resistance Range | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
Accuracy Rang of Resistance | (1.0%+5)± |
Capacitance Range | 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF |
Accuracy Rang of Capacitance | (5.0%+10)± |
Frequency Range | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
Accuracy Rang of Frequency | (3.0%+3)± |
Temperature Range | "-20°C~1000°C. '-4°F~1832°F" |
Accuracy Rang of Temperature | (2.0%+2)± |
Duty Cycle | "1%~99% (3.0%+3)±" |
Accuracy Rang Duty Cycle | (3.0%+3)± |
Counts | 6000 |
AC bandwidth | 1KHz |
input impedance | 10MΩ |
LCD Size | 43.6*32.5mm |
Sampling rate | Yes |
Auto/Manual range | Yes |
Continuity | Yes |
Diode Test | yes |
Data hold | Yes |
NCV | Yes |
Back light | Yes |
Flashlight | Yes |
DCA ZERO | Yes |
Low battery indication | Yes |
Auto Power Off | Yes |
True RMS | Yes |
shockproof protection | Yes |
Analog Bar Graph | Yes |
VFD | Yes |
INRUSH | Yes |
MAX/MIN | Yes |
REL | Yes |
LowZ | Yes |
V-LoZ | Yes |
VA screen | Yes |
Body Material | ABS |
Power | 3xAAA(1.5V)Batteries |
Weight | 320gr |
operating temperature range | 0~40°C |
size | 240*85*47mm |
Jaw opening | 40mm |
Jaw Size | ø35*60mm |
Safety Rating | EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V |
packaging | Color Carton |
Accessories | probe, EVA toolkit, manual |
