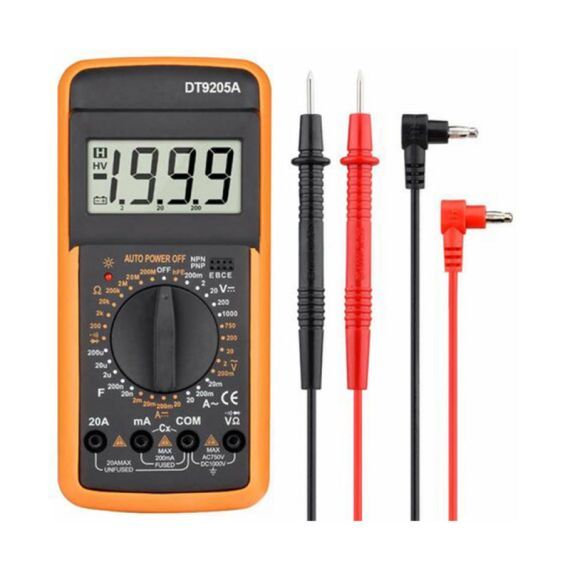

Digital multimeter, DT9205A

Functions

Range

Accuracy

Resolution

Frequency range

Overload Protection

DC Vol.

200 mV

± (0.5% + 3d)

0.1 mV

-

1000 V

2 V

1 mV

20 V

10 mV

200 V

100 mV

1000 V

± (1.0% + 5d)

1 V

AC Vol.

200 mV

± (0.8% + 5d)

0.1 mV

40-400 Hz

700 V

2 V

1 mV

20 V

10 mV

200 V

100 mV

700 V

± (1.2% + 5d)

1 V

DC Amp.

2 mA

± (2.0% + 3d)

0.001 mA

50-60 Hz

200 mA (FUSED)

20 mA

0.01 mA

200 mA

0.1 mA

20 A

± (2.0% + 5d)

10 mA

20 A (UNFUSED)

AC Amp.

2 mA

± (1.0% + 3d)

0.001 mA

50-60 Hz

200 mA (FUSED)

20 mA

0.01 mA

200 mA

0.1 mA

20 A

± (1.9% + 5d)

10 mA

20 A (UNFUSED)

Resistance

200Ω

0.1Ω

-

220 V

2 KΩ

1Ω

20 KΩ

10Ω

200 KΩ

100Ω

2 MΩ

1kΩ

20 MΩ

± (1.2% + 5d)

10 KΩ

200 MΩ

± (5% + 20d)

100 KΩ

Capacity

2 nF

± (2.5% + 20d)

0.001 nF

-

100 V

20 nF

0.01nF

200 nF

0.1 nF

2 μF

1 nF

200 μF

100 nF

Diodes
