DMMs, digital multimeter, RONIX RH-9602

Digital multimeters (DMMs) are versatile electronic instruments used for measuring various electrical parameters. They are essential tools for professionals in the electrical, electronics, and telecommunications industries, as well as for hobbyists and DIY enthusiasts. Digital multimeters work by providing precise measurements of voltage, current, resistance, and continuity.

They typically feature a digital display that shows the readings, along with a selection dial or buttons to choose the desired measurement function. DMMs use probes or test leads to make electrical connections and measure the desired parameters.

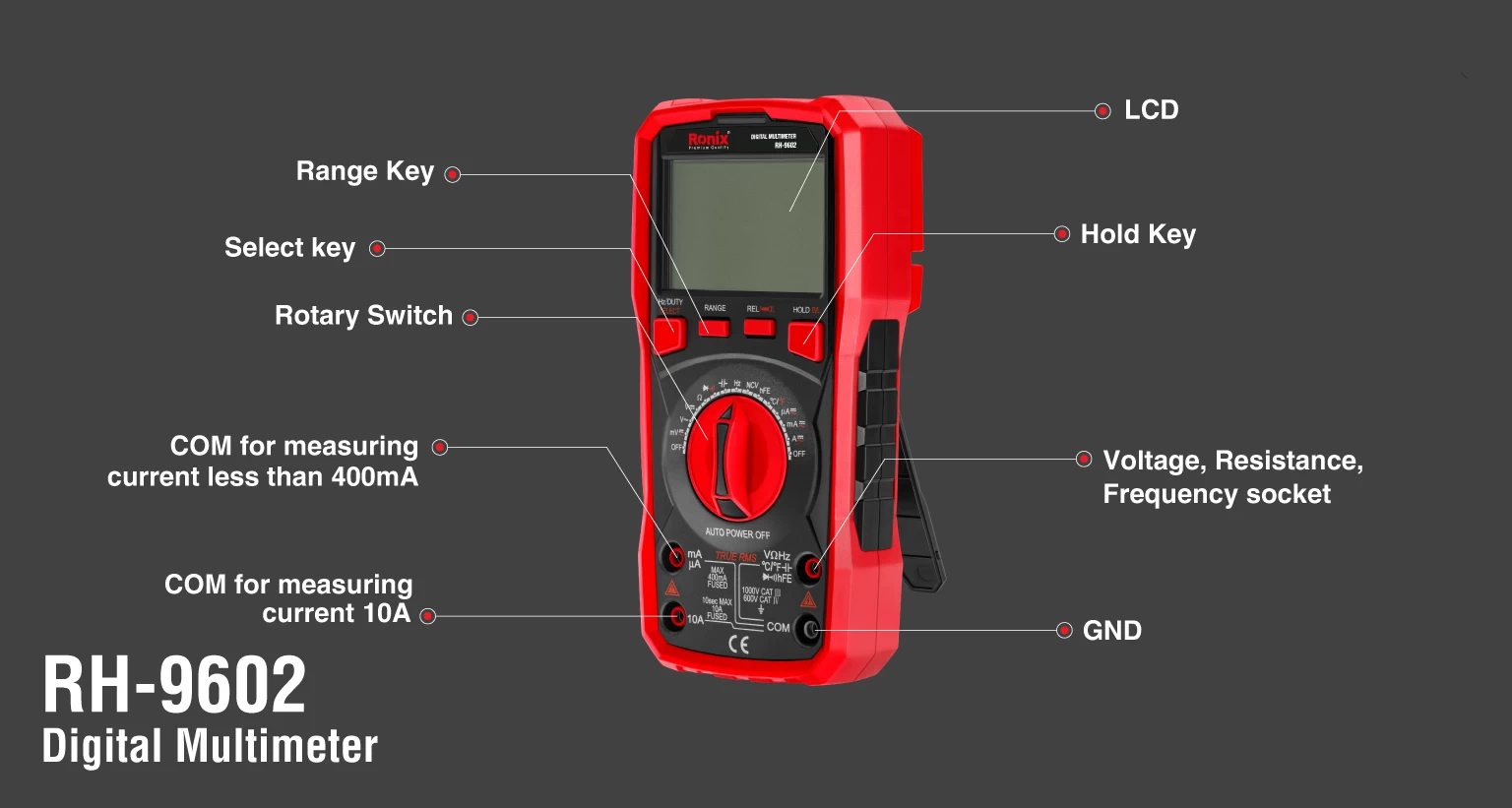

Ronix RH-9602 is such a multimeter that features a large LCD with the ability to read various electric parameters in addition to temperature with excellent accuracy. If you are looking for a jack-of-all-trades multimeter that offers accurate results fast, Ronix RH-9602 is the one to buy.

• Overload protection for all measurement range
• Low input impedance helps to prevent false readings due to ghost voltage
• The flashlight function bring comfort and safe work in dark spaces
• Provide with Non-contact AC Voltage detection function
• Achieving a high level of safety in a compact body and lightweight design
• Robust body design with shockproof protection
• Auto power off within 15 minutes if there is no operation, helps conserve the battery
• Designed and conforms to IEC 61010-1-2010 Standard, safe and reliable

Ideal for electrical equipment testing and maintenance

Current DC	400uA/4000uA/40mA/400mA/10A
Model	RH-9602
DC Voltage Range	"40mV/400mV/4V/40V/400V/ 1000V"
AC Voltage Range	40mV/400mV/4V/40V/400V/750V
DC Current Range	400uA/4000uA/40mA/400mA/4A/10A
AC Current Range	400uA/4000uA/40mA/400mA/4A/10A
Resistance Range	400Ω/4k Ω/40k Ω/400k Ω/4M Ω/40MΩ
Capacitance Range	"6nF/60nF/600nF/6uF /60uF/600uF /6mF/60mF/100 mF"
Frequency Range	10hz/100hz/1000hz/10khz/100khz/1mhz/20mhz
Temperature Range	(-20～1000)℃ /(-4～1832)℉
Diode Test	yes
Transistor test	Yes
NCV	yes
buzzer continuity	Yes
Flashlight	Yes
Low battery indication	Yes
backlight	Yes
Data hold	Yes
True RMS	Yes
Auto Power Off	Yes
Analog Bar Graph	No
shockproof protection	Yes
Duty Cycle	yes
input impedance	10МΩ
Sampling rate	Approx. 3times/second
AC Frequency Response	40Hz~1k Hz
Operation Modes	Auto /manual
Max. Exhibition	3999Counts
LCD Size	68.2*47.9 mm
Body Material	ABS
Power Supply	1.5V AAA battery
operating temperature range	℃(0 ~ 40)
Weight	Approx 395g (include four 1.5V batteries)
Safety Rating	"1000V CATIII 600V CATIV"
Dimensions	186mm×92mm ×52mm
Supplied In	Color box
Includes	4pcs AAA battery,1pc test leads,1pc temperature probe
Accuracy Rang of DC Voltage	"40mV/400mV(士(0.5%+5) 4V /40V /400V (±(0.5%+4)) 1000V ±(1.0%+6)"
Accuracy Rang of AC Voltage	40mV/400mv +(1.0%+6) 4V/40V/400V(±(0.8%+10)) 750V±(1.2%+10)
Accuracy Rang of DC Current	400uA/4000uA(±(1.0%+10)) 40mA/400mA(±(1.2%+8)) 4A/10A(±(1.2%+10))
Accuracy Rang of AC Current	400uA/4000uA/40mA/400mA (±(1.5%+10)) 4A/10A (±(2.0%+5))
Accuracy Rang of Resistance	"400Ω(±(0.8%+5) 4k Ω/40k Ω/400k Ω/4M Ω±(0.8%+4) 40MΩ(±(1.2%+10))"
Accuracy Rang of Capacitance	6nF (±(5.0%+40) 60nF/600nF/6uF /60uF/600uF 士(3.5%+20) 6mF 士(5.0%+10) 60mF/100 mF ±10%
Accuracy Rang of Frequency	10hz/100hz/1000hz/10khz/100khz/1mhz/20mhz ±(0.5%+10)
Accuracy Rang of Temperature	"(-20-1000)℃ <400℃ ±(1.0%+5) ≥400℃ ±(1.5%+15) (-4~1832)℉ <752℉ ±(1.0%+5) ≥752℉ ±(1.5%+15)"
