Martin Brother - Long Throw W8LM
Home/Store/Music and Entertainment/Speakers/Passive Speakers
Product Details
Brand: Martin Brother
SKU: W8LM

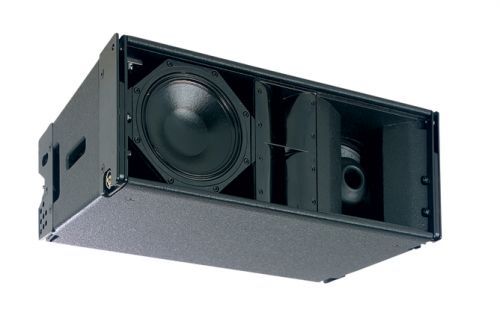

The W8LM is a mini line array enclosure designed to bring line array performance benefits to a variety of small and medium scale applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres and indoor venues. It is also suitable as a delay system for large scale outdoor sound reinforcement.

Following the constant directivity horn design philosophy of the W8L Longbow and the W8LC, the W8LM is a three-way system that combines line array principles with innovative horn loading techniques to produce a next generation, small line array with maximum dynamic impact.

TYPE Three-way, active/passive, mini line array element
FREQUENCY RESPONSE (5) 60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section 8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator
8" (200mm)/2" (50mm) voice coil, neodymium driver, front horn loaded, rear reflex loaded
DRIVERS: HF Section 2 x 1" (25mm) exit HF compression drivers,
horn loaded
RATED POWER (2) LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
Passive: 400W AES, 1600W peak
RECOMMENDED AMPLIFIER MA5.2K
SENSITIVITY (6) LF + MF: 100dB
HF: 106dB
FR: 99dB rising to 105dB at HF
MAXIMUM SPL
(calculated @ 1m)
LF + MF: 126dB continuous, 132dB peak
HF: 125dB continuous, 131dB peak
Passive: 125dB continuous, 131dB peak
NOMINAL IMPEDANCE LF + MF: 12 ohms
HF: 12 ohms
FR: 12 ohms
DISPERSION (-6dB) 100º horizontal (down to 800Hz),
7.5º vertical
120º horizontal (down to 700Hz) @ -10dB
CROSSOVER 300Hz passive, 2.2kHz active or passive
ENCLOSURE Vertical trapezoid with 3.75º wall angle, multi- laminate birch ply construction
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
DIMENSIONS (W) 620mm x (H) 243mm x (D) 400mm
(W) 24.4ins x (H) 9.6ins x (D) 15.8ins
WEIGHT
(including rigging hardware)
29kg (64lbs)
