Professional 8-channel mixer with DSP effects and Bluetooth/USB

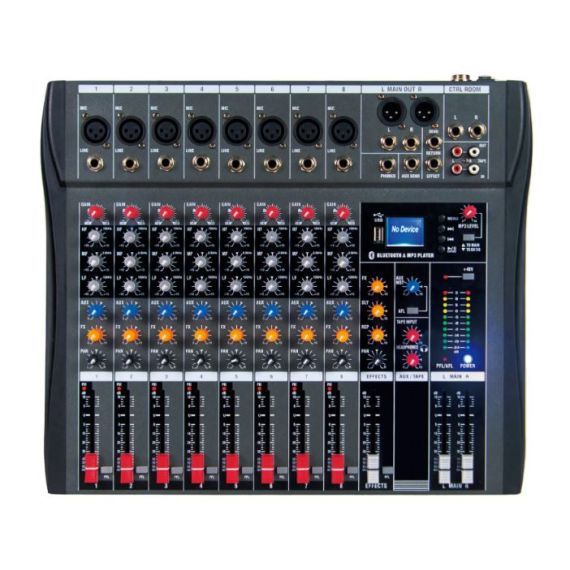

8-Channel Professional Mixer with DSP Effects, Bluetooth & USB

A versatile and reliable mixer designed for live events, recording studios, podcasts, conferences, and broadcast environments.

This mixer offers exceptional sound quality with 8 independent input channels, each featuring high-fidelity microphone preamps, a 3-band EQ, and selectable DSP digital effects. It also supports wireless audio streaming via Bluetooth and includes a built-in USB MP3 player for seamless digital media playback.

Key Features

Channel Inputs (8 Channels)

• 8 combo XLR/TRS inputs (MIC/LINE)
• Independent gain control per channel
• 3-band EQ on each channel (High, Mid, Low)
• Dedicated controls: AUX, EFF, PAN, MUTE, PFL
• Smooth 60mm precision faders

Built-in DSP Effects

• 16 selectable digital effects (reverb, delay, chorus, etc.)
• Adjustable effect intensity with dedicated routing
• Separate fader for effects send

Output Section

• MAIN L/R outputs (6.35mm jack)
• CONTROL ROOM outputs
• AUX SEND and FX SEND outputs
• Headphone output with independent volume control

Multimedia Support

• Built-in MP3 player via USB port
• Bluetooth module for wireless audio streaming
• LED display with playback controls: Play, Stop, Next, Mode
• TAPE IN / TAPE OUT (RCA connectors)

Power & Phantom Supply

• +48V phantom power switchable for condenser microphones
• Universal power supply: 110–240V

Monitoring

• 10-segment stereo LED VU meter for level monitoring
• PFL (Pre-Fader Listen) for headphone monitoring

General Specifications

• 8-channel professional analog mixer with intuitive layout
• Low-noise, high-headroom preamps
• Sturdy metal chassis with shock-resistant design
• Perfect for live performances, DJ sets, audio production, conferences, and corporate events

Package Contents

• 1 × 8-Channel Audio Mixer
• 1 × Power Cable
• 1 × User Manual (in English)
