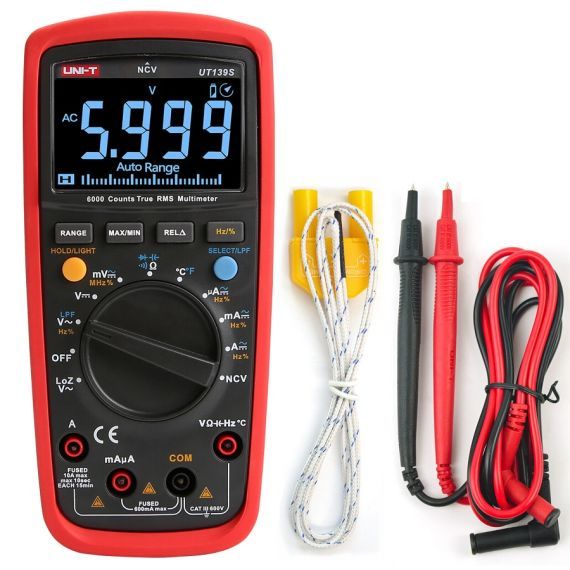

The UT139 series are CAT III 600V digital multimeters designed for electricians.
Its NCV function can effectively control the electrical state by measuring the EM field intensity.
The new UT139E/S models include special features such as LoZ (ACV) to measure "ghost" voltage.
The integrated 31-segment analog bar also offers electricians a better visual representation of measurement results.
UT139S is built with black EBTN display and is a perfect meter for working in dark environments.
Specifications | Range | UT139S |
DC voltage (V) | 600V | ±(0.5%+2) |
AC voltage (V) | 600V | ±(0.8%+3) |
DC current (A) | 10A | ±(0.7%+2) |
AC current (A) | 10A | ±(1%+3) |
Resistance (Ω) | 20MΩ | |
40MΩ | ||
60MΩ | ±(0.8%+2) | |
Capacity (F) | 99.99mF | ±(4%+5) |
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
Temperature (°C) | -40°C~1000°C | ±(1%+4) |
Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
