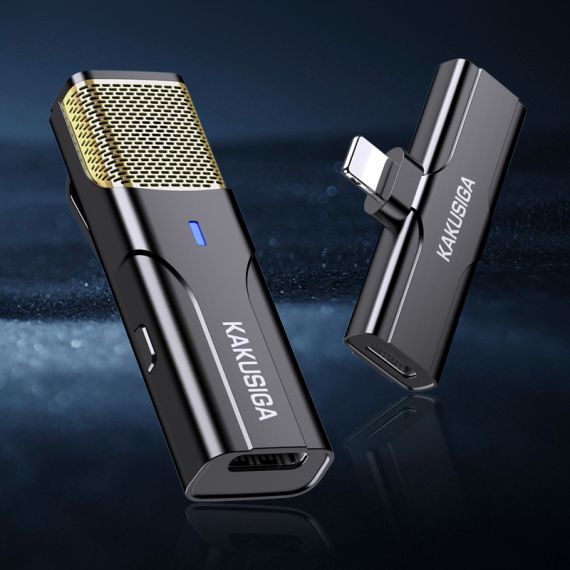

KSC-1106 Lightning connector rechargeable wireless microphone

Characteristics

• Model: KSC-1106
• Transmission protocol: 2.4G wireless protocol
• Chip: JL6973
• Transmission distance: ≥10 meters,
• Mode: Support noise reduction, mute
• Battery: 85mAh
• Usage time: about 8 hours
• Sound delay: ≤25ms
• -38 dB ± 3 dB omnidirectional condenser microphone
• Frequency Response: 20Hz-20KHz
• Sampling rate: 44.1KHz
• Signal-to-noise ratio: ≥70 dB
• Working current ≤ 12 mA
• Shutdown current ≤ 20uA
• Adaptive Voltage: 5V/1A
• Size ：48 * 26 * 7mm
• Smartphone connector: USB Lighting

Instructions

1 Power on: Press and hold the power button of the microphone transmitter for 3 seconds to turn it on
2 Pairing: Automatically searches the receiver for pairing after booting (the receiver will be connected to your cellphone) - blue light flashes
3. Pairing successful : The blue light is always on
4. Power off: Press and hold the power button for 3 seconds, the indicator turns off
5. Mode switching: Short press the power button to switch to noise reduction mode (blue light), to the original sound mode (green light)
6. Silent mode: double click the power button, the red and blue lights flash to indicate the silent mode has been activated, double click the power button to cancel the silent mode
