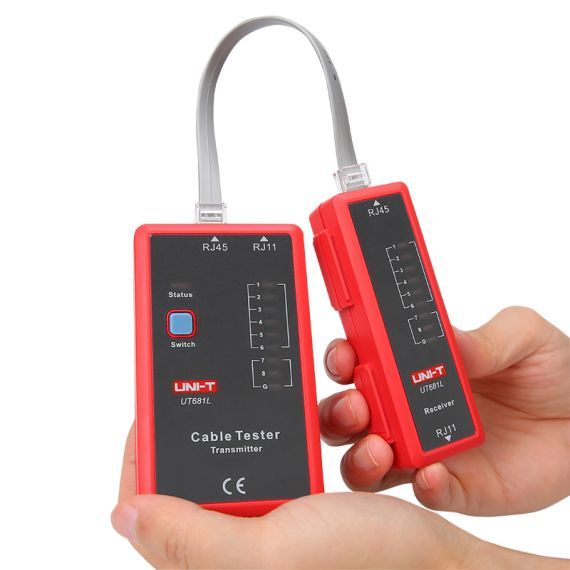

RJ45/RJ11 cable tester UT681L UNI-T a

The UT681 series portable cable testers can be used to quickly check whether Ethernet/telephone/BNC/HDMI cables are conductive, shorted, crossed or open circuited. They are ideal tools for technicians to install, maintain and inspect the current system circuit weekly.

Brand: UNI-T

EAN code: 6935750568132

Supplier code: UT681L

Certifications: CE, UKCA

LED status display

Automatic open/short/cross circuit control

Single button operation

Manual/automatic shutdown (after 10 minutes of inactivity)

Low battery indication

Power supplied by 9V battery

Specifications

UT681L

Test functions Test for RJ45/RJ11 cables √

Fast test mode √

Slow test mode √

Shielded and unshielded ethernet cables √

Manual shutdown function √

Automatic sleep function √

Single button operation √

Power supply: 9V battery √

Low battery indicator √

Environmental conditions of use Operating temperature: 0~40℃ √

Storage temperature: -10~50℃ √

Operating humidity: 20~80%RH √

Storage Humidity: 10~90%RH √

Altitude: ≤2000 meters √

CE safety standard EN61326-1: 2013; EN61326-2-2: 2013 √

General characteristics

Color Gray and red

Transmitter Weight: 87g; receiver: 51g

Transmitter Dimensions: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
