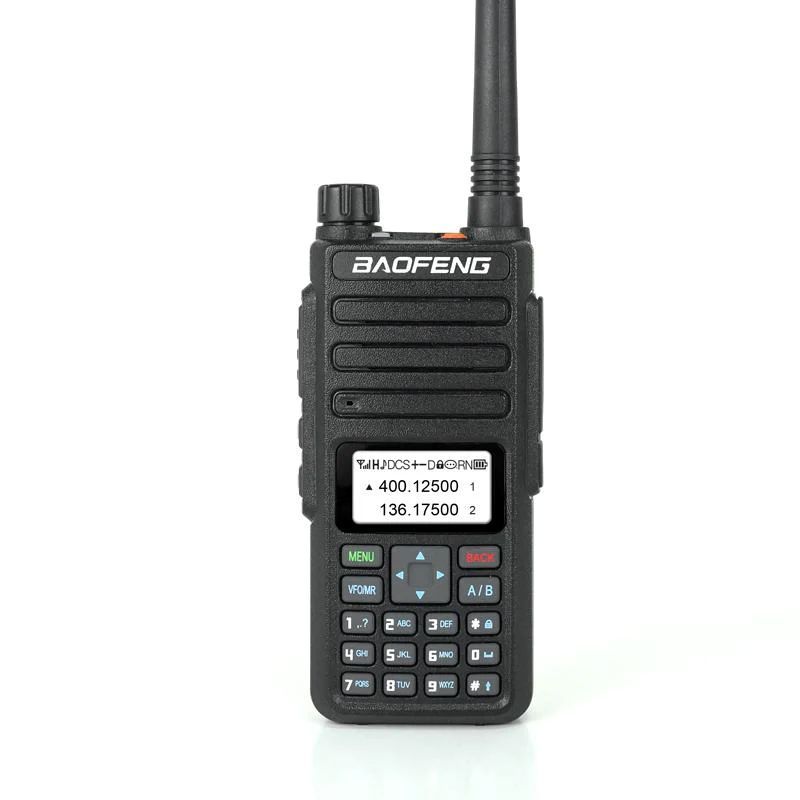

10W, VHF radio, transceiver, Baofeng BF-H6

Two way Radio, dual band VHF UHF, 2200 mAh Battery, BAOFENG BF-H6

General
Frequency Range VHF:144-148MHz UHF:420-450MHz(Dual band)
Memory Channel 128 Group
Channel Spacing 25KHz(Wide)、12.5K(Narrow)
Operating Voltage DC7.4V
Frequency Stability ±2.5ppm
Operating Temperature -20~+60℃
Antenna Impedance 50Ω
Transmit Current H≤2.5A；M≤1.8A；L≤1.1A
Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
Stray Power ≤7.5uW
Adjacent Channel power ≤-65dB/≤-60dB
Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
QT/DQT Deviatio（wide/narrow） 0.7±0.1KHz/0.4±0.1KHz
Modulation Sensitivity 8-12mV
Demission 134*62*32mm(no including the antenna)
Weight About 300g(include in battery and antenna)

Receiver
Receiver Sensitivity ≤0.25uV(12dB SINAD）
Audio Power 1W@10%
Audio Distortion <10%
Signal-to-Noise ≥45dB
Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB
Intermodulation(wide/narrow ) ≥-65dB/≥-60dB
Stray Suppression ≥-65dB
Receive Current ≤380mA

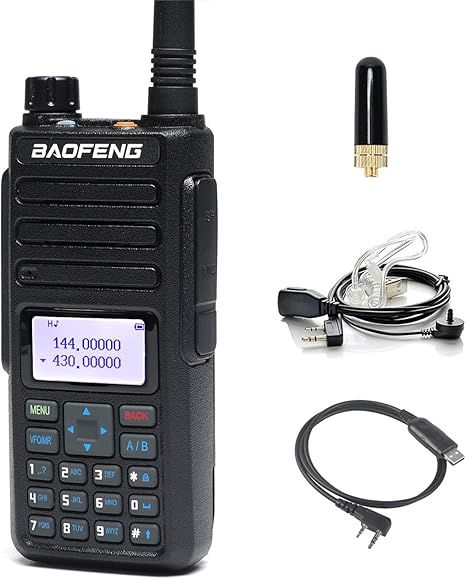

Standard Package Content
BAOFENG BF-H6 model
2200mAh Li-ion Battery Pack
Charger Unit with AC Adapter
Antenna
Hand Strap
Belt Clip
Earpiece
User Manual
