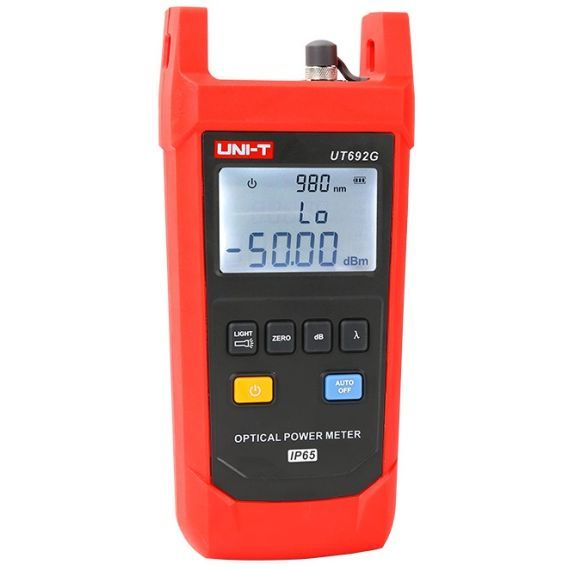

UT692G UNI-T fiber optic tester
€69.98
Price incl. VAT (18%) €10.67
UT692G UNI-T fiber optic tester
In stock
UT692G UNI-T fiber optic tester
Product Details
Brand: UNI-T
SKU: U1075
The UT692 series portable optical power meters are used to measure absolute optical power or relative optical power loss across the length of fiber optic cables.
The UT692 series is designed to be durable, the meters can withstand drops from 2 m and have an IP65 dust/water resistance rating. Furthermore, the other features of UT692 include backlit display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.
Characteristics
- Brand: UNI-T
- EAN code: 6935750569214
- Supplier code: UT692G
- Certifications: CE, UKCA
- Low battery indication
- Automatic shutdown
- IP65/2m drop tested
| Specifications | UT692G | |
| Measurement range (dBm) | -50~+26 | |
| Wavelength range (nm) | 800-1700 | |
| Connectors | FC/SC/ST universal connector (FC as standard, SC and ST adapter as options) | |
| Type of detector | InGaAs | |
| Tolerance | ±5% | |
| Calibrated wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 | |
| Display | Linear: 0.1%, logarithmic: 0.01 dBm | |
| Auto power off (min) | 10 | |
| Diet | 1. 5V AA alkaline battery (3pcs) | |
| Low battery indication | Low battery indication at approximately 3.3V, automatic shutdown at approximately 3V | |
| Battery operating time (h) | ≥60 | |
| Drop height (M) | 2 | |
| Operating temperature | 0℃~40℃ | |
| Storage temperature | -10℃~50℃ | |
| Dimensions (mm) | 189×87×45 | |
| Weight | 286 | |
| Certifications | CE, IP65, RoHS | |
